RUPES LHR15 5" Backing Plate

LHR15 Backing Plate for Mark III and ES

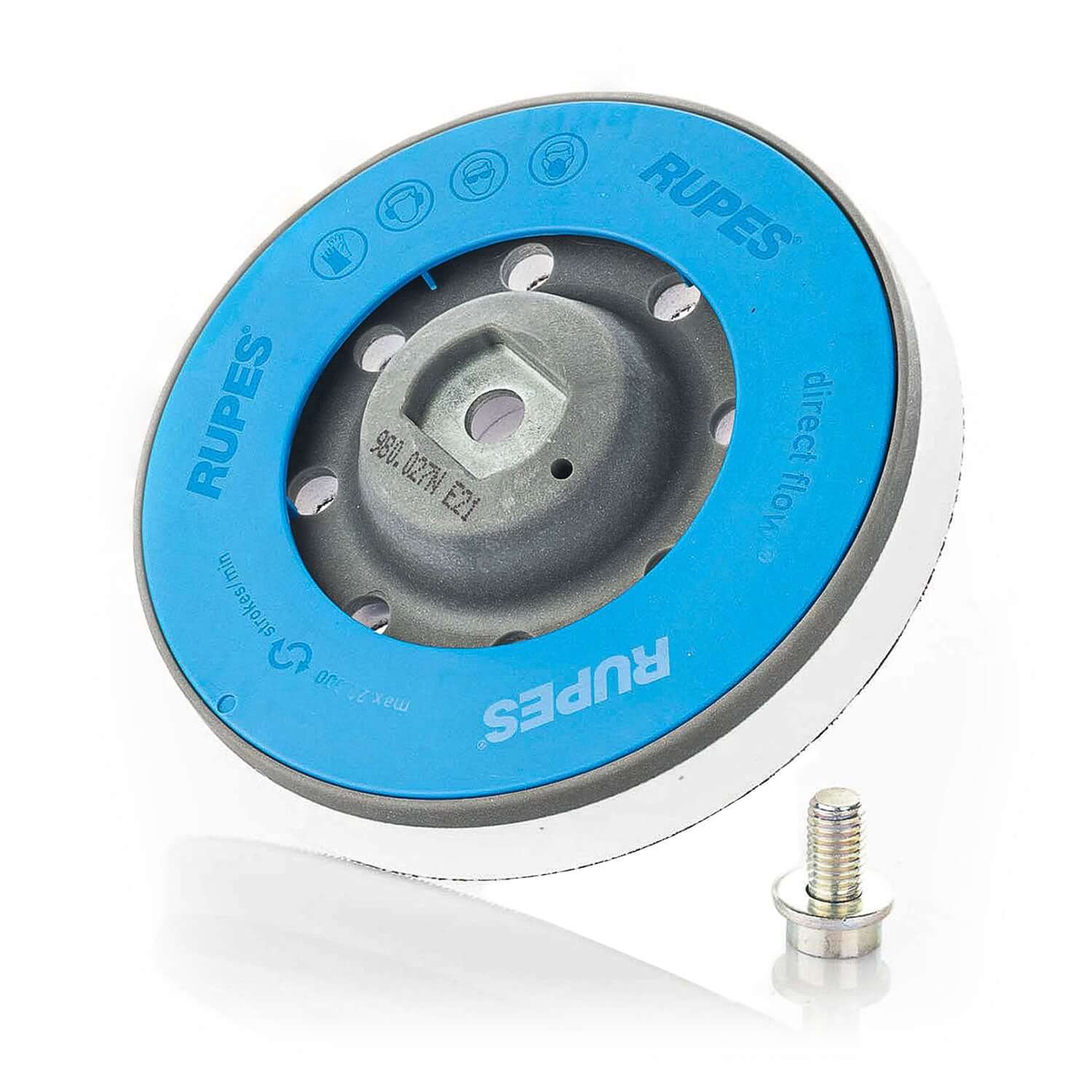

The RUPES LHR15 backing plate (part 980.027N) is the 125 mm hook-and-loop plate for the LHR15 Mark III and the RUPES LHR15ES polisher, and RUPES's parts diagrams show the same plate on the 12 mm LHR12E Duetto. It bolts to the machine with one center screw: loosen it with the Allen wrench RUPES supplies, turn the new plate slightly until its hub drops onto the drive, and tighten. The back is printed "direct flow" and carries a ring of vent holes that move air through the pad. RUPES specs 150 mm foam pads on this plate for the LHR15ES.

If the center screw is stripped or lost, the RUPES 9.715 backing plate screw is sold separately. Newer machines take a different plate: the LHR15 Mark V and cordless HLR15 use the RUPES Precision Pro 5" backing plate (980.720), and RUPES does not list either plate for the other machine family. Read the model on your polisher's label before ordering, because both plates are 5 inches.

What Makes it Great:

🌀 Built for the 15 mm Orbit: This is the plate RUPES pairs with the LHR15's 15 mm throw, so the machine runs with the balance it left the factory with.

🌡️ Direct Flow Vent Holes: A ring of holes through the plate lets air reach the back of the pad instead of trapping it under a solid face.

🔩 One-Screw Mount: A single center screw holds the plate, so a worn plate comes off and a new one goes on with the Allen wrench that ships with the polisher.

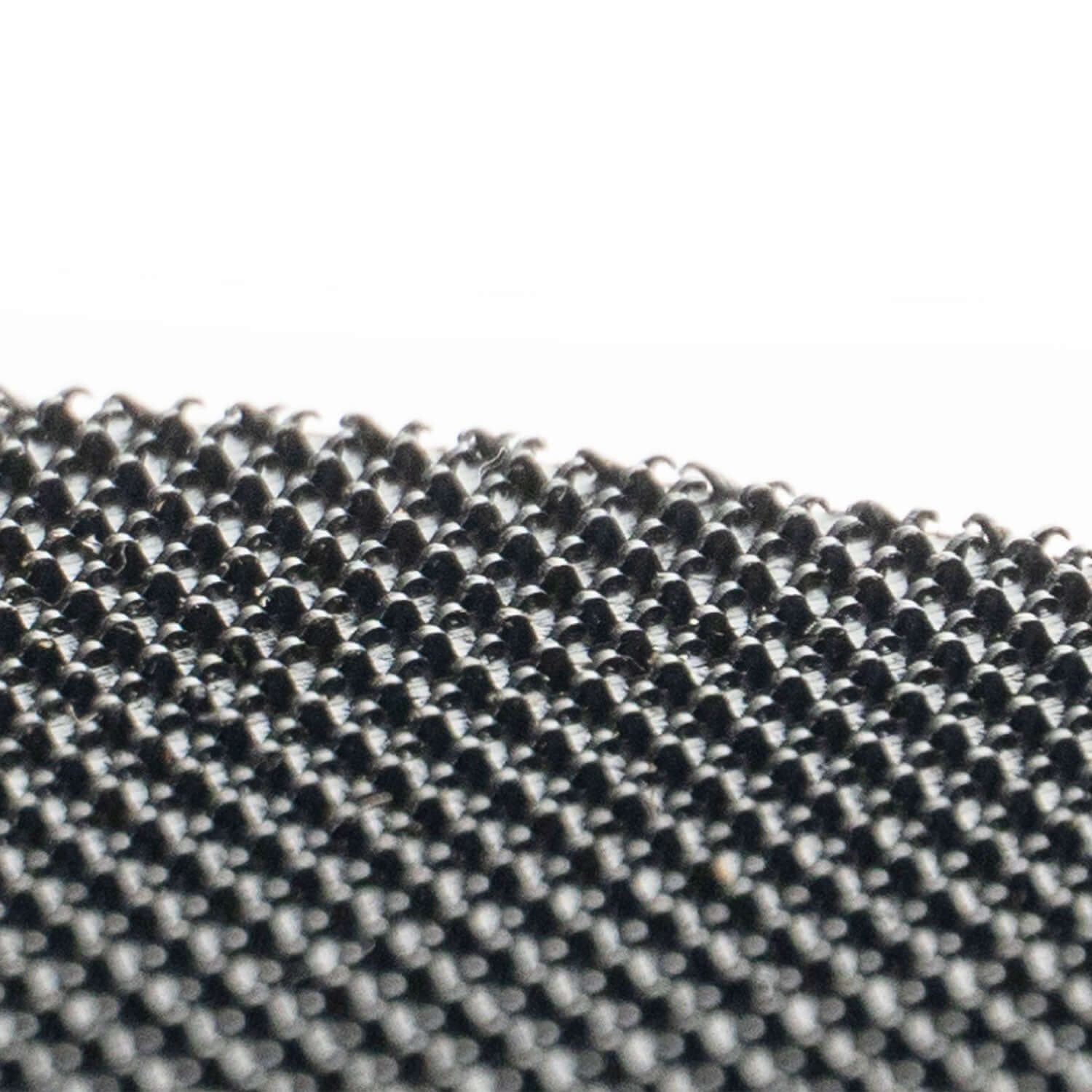

🎯 Holds 150 mm Pads Centered: Fresh hook material keeps a 150 mm foam pad from walking off center at full speed, which is when a worn plate starts to shake.

Frequently Asked Questions

Does the LHR15 Mark III backing plate fit the LHR15 Mark V?

No. The Mark V and the cordless HLR15 take the Precision Pro 5" plate (980.720), and RUPES lists this 980.027N for the Mark III, the LHR15ES, and the LHR12E Duetto. Check your polisher's label before ordering.

What size pads go on the RUPES LHR15 backing plate?

RUPES specs 150 mm (about 6 inch) foam pads for the LHR15ES on its 125 mm plate. A pad that overhangs the plate a little gives the 15 mm orbit room to move without the plate edge touching paint.

How do you know when a RUPES backing plate needs replacing?

Replace it when pads no longer stay centered, the hook face is bald or melted, or the polisher vibrates more than it did with a fresh pad. Re-center the pad first, since an off-center pad causes the same shake.
