Rotary Buffer Extender Bolt

Extender Bolt for Double-Sided Buffing Pads, 5/8"-11

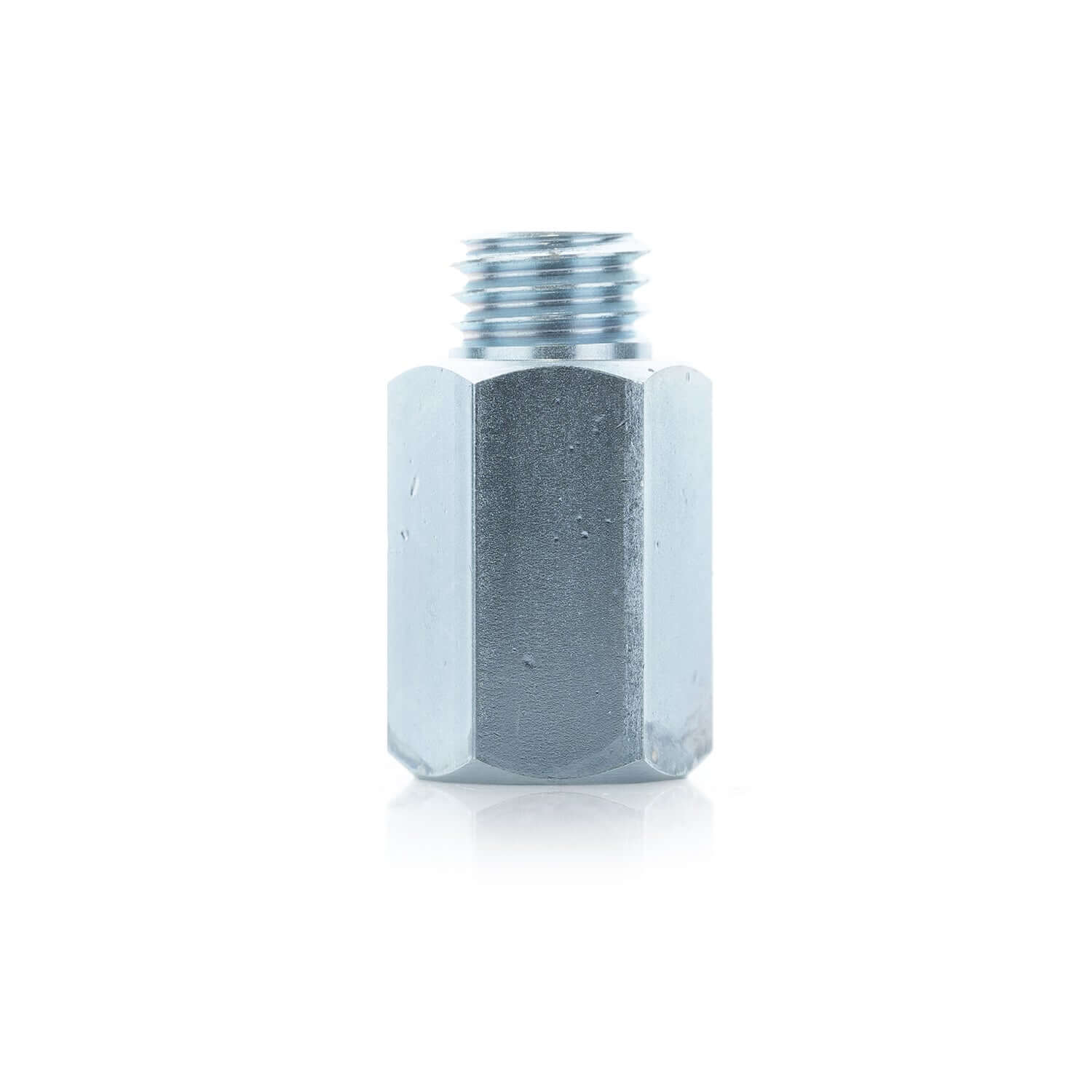

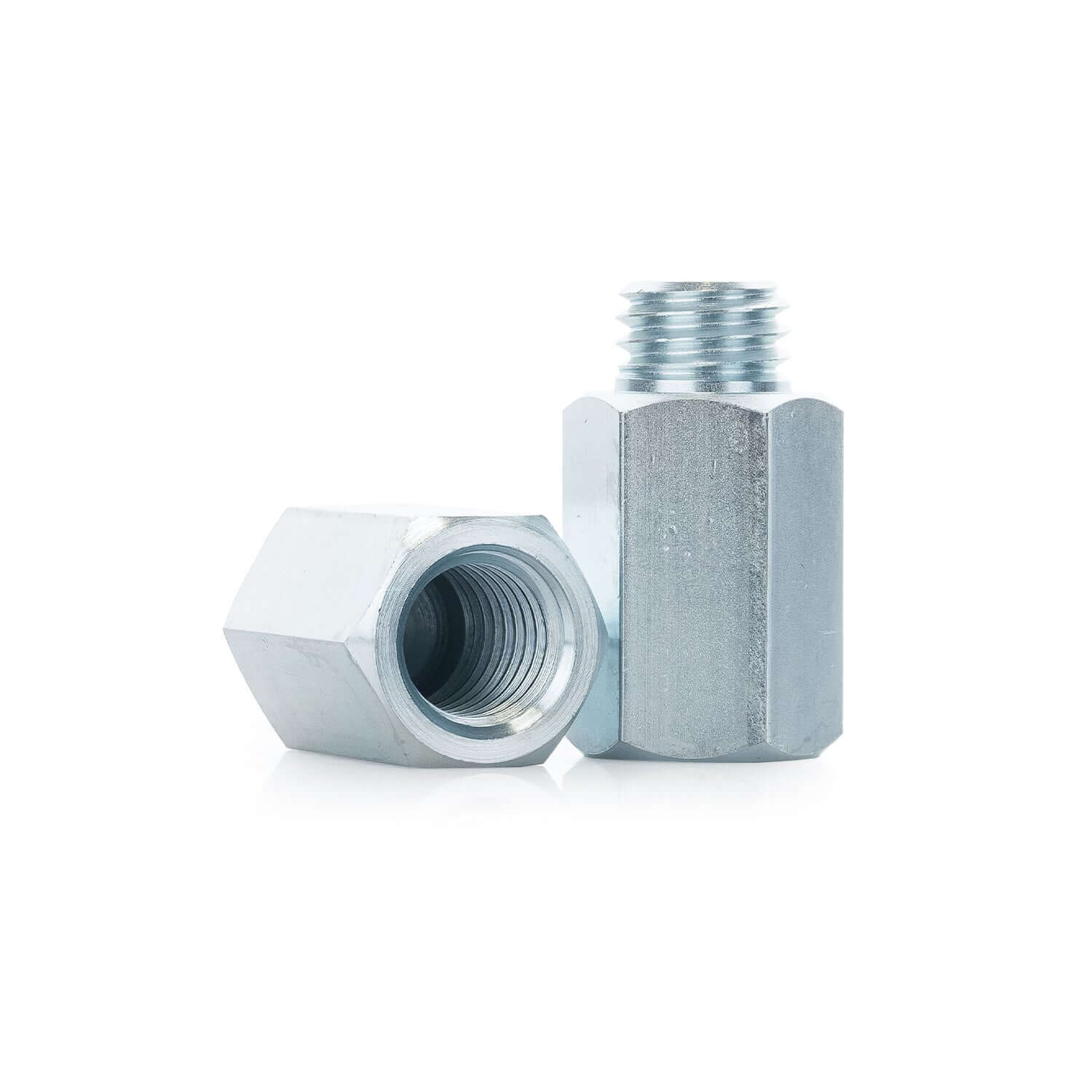

The Buff and Shine extender bolt (part 1400) is a hex coupling with a female 5/8"-11 thread on one end and a male 5/8"-11 stud on the other, and Buff and Shine sells it as its double-sided pad extender. It threads onto a rotary buffer's spindle and becomes a new mounting point for the pad, set farther out from the tool. Double-sided wool pads need that distance. They have no backing plate, so without the bolt the rear face runs right against the polisher's gear head. On a threaded rotary backing plate, the same added length moves the tool body farther from the panel.

SNS stocks it alongside Buff and Shine's 8" Double-Sided White Wool Cutting Pad, a 4-ply natural wool cutting pad you flip over when one face loads up with compound. The bolt also threads into the hub of a 5/8"-11 plate such as the Semi-Flex 6" Rotary Backing Plate, which lets the gear head clear a bumper cover, mirror, or spoiler while the pad works the panel beside it. It fits any of our rotary buffers with a 5/8"-11 spindle. Each bolt is sold on its own, so order one for every rotary that runs double-sided pads.

What Makes it Great:

🔩 5/8"-11 at Both Ends: The female end goes on the spindle and the male end takes the pad or plate, all on the thread most North American rotary polishers already use.

🛑 Spindle Stays Behind the Pad: The pad threads onto the bolt's stud instead of the bare spindle, so a long spindle can't reach through the hub to the face that touches the paint.

📏 Room at the Gear Head: The hex body spaces the pad out from the tool, so the back face of a double-sided pad spins free instead of dragging on the housing.

🔧 Wrench Flats: Rotary torque can snug a pad or the bolt itself down hard during a long cut. The six flats take an open-end wrench, so it breaks loose without twisting the wool.

Frequently Asked Questions

Why does a double-sided buffing pad need an extender bolt?

The pad has a female 5/8"-11 hub through its center and nothing behind it. Threaded straight onto a rotary, its back face sits against the gear head, and on many machines the spindle is longer than the hub, so the tip can come through the working face and mark the finish. The extender bolt fixes both problems.

How do you mount a double-sided pad with an extender bolt?

Unplug the polisher, hold the spindle lock, and spin the bolt's female end onto the spindle by hand until it seats. Thread the pad's hub onto the bolt's stud and snug it by hand. To flip the pad, hold the spindle lock and unscrew only the pad. If the bolt turns with it, hold the hex with a wrench.

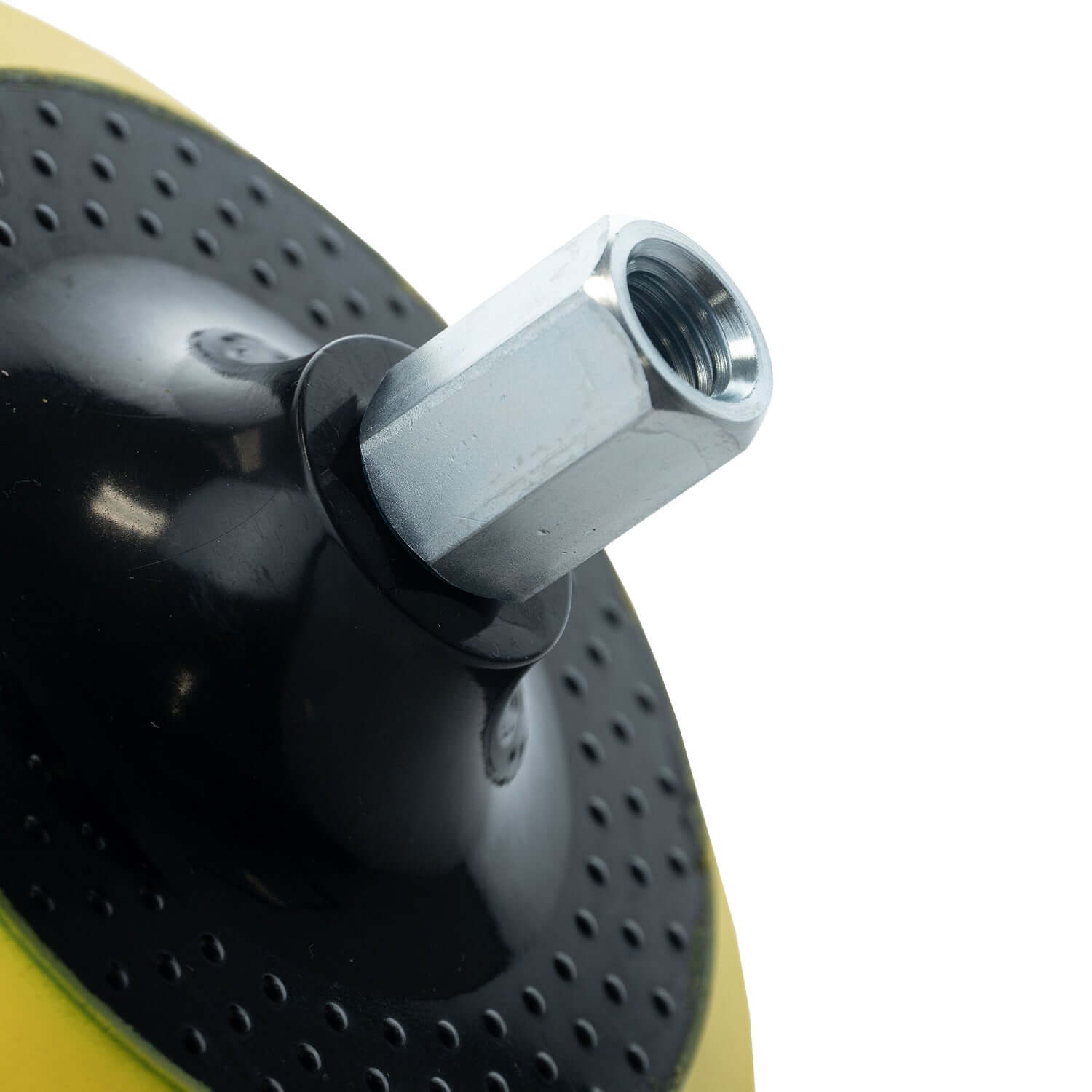

Can you use an extender bolt with a rotary backing plate?

Yes. A plate with a female 5/8"-11 hub threads onto the bolt's stud just as it threads onto a spindle. The added length helps when the tool body would otherwise touch trim or a neighboring panel.

Does the extender bolt fit M14 or dual action polishers?

No. Both ends are 5/8"-11. M14 rotaries need a metric thread, and Buff and Shine makes a separate extender for them, part 1414. Dual action polishers mount their plates on a much smaller thread, and double-sided pads are made for rotary use.

Specifications:

Installation (Best Practices):
