RUPES Parts
RUPES Carbon Brushes
RUPES Carbon Brushes
SNS Auto Supply
500 10th St NE
Suite 210
West Fargo ND 58078
United States
Made in Italy.
Available Size(s) : RUPES Standard.
Content(s) : 1 Carbon Brush.

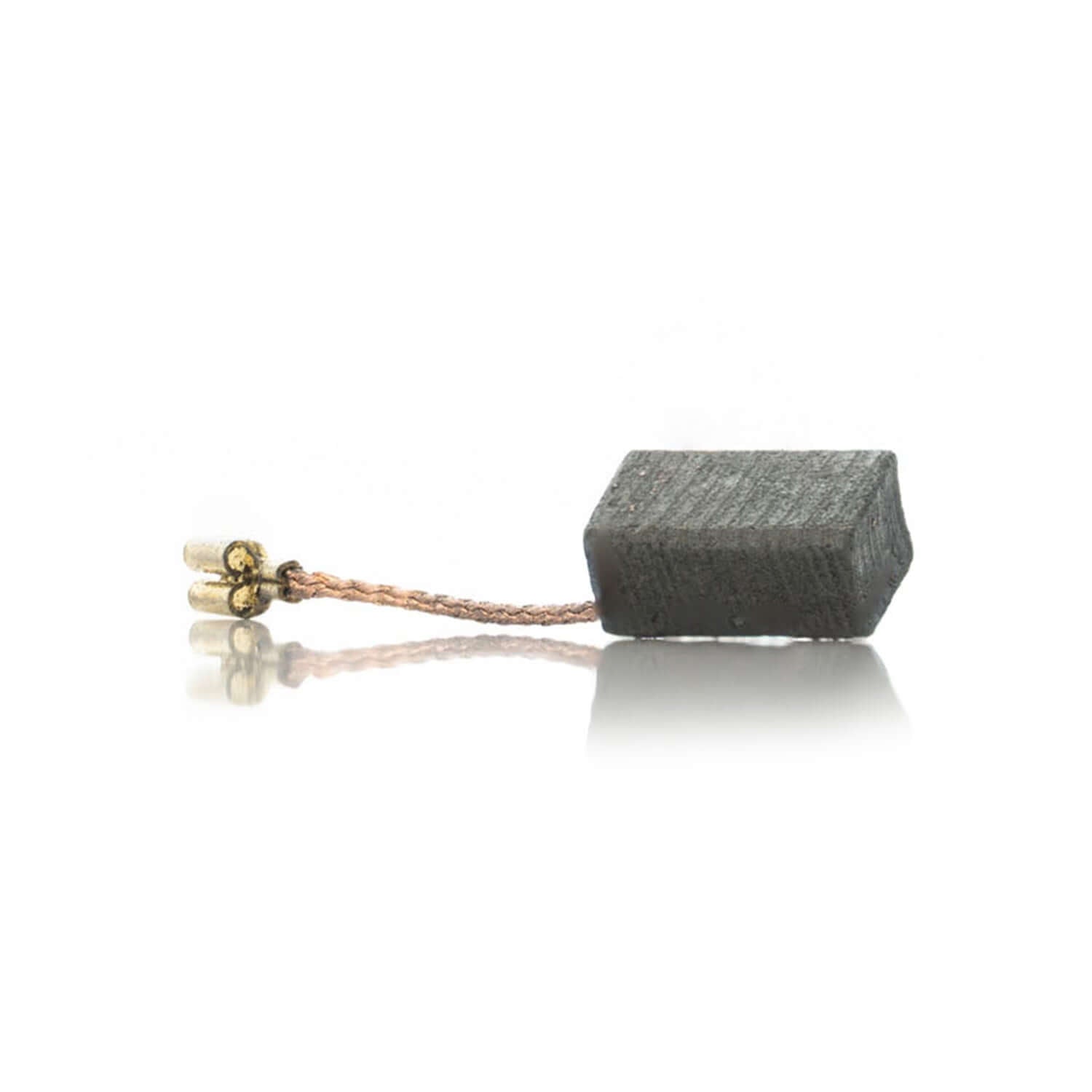

Genuine Replacement Carbon Brush for RUPES Tools.
These RUPES Carbon Brushes are genuine factory replacements for RUPES Polisher Systems. RUPES Polishers are electric or pneumatic tools that are highly effective in the paint correction process. Get your tool fixed or stock up on replacement parts here!
When do I need to replace them?
1. When the tool fluctuates in RPM almost sounding like it will shut off.
2. Visiable or excessive sparking inside vents of the upper handle.
3. Tool sounds like there is static or sparks coming from inside of it.
Things to Look for when Replacing Carbon Brushes.
- Pay attention to how the tool is wired when taking off the upper handle. (I.E. take a picture of it.)
- Make sure the carbon brush copper wire is on the same side of where it is plugged into the brush holder. (Opposite of the black spring)
- After installing the carbon brush make sure it feeds smoothly through the gold carbon brush holder.
- When putting the upper handle back on, make sure there are no wires on top of the switch and that no wires are going to be pinched.
Troubleshooting if Tool is Still Facing RPM/Sparking Problems.
- Check if brushes are installed properly (I.E. copper wire on opposite side of the spring).
- Check to see if carbon brushes are feeding through the brush holder properly.
- Check commentator on rotor where carbon brushes touch and check for wear. [If it is super concave, then rotor most likely needs to be replaced because it is worn down too much to function properly even with new brushes].
Fits the Following Tools;

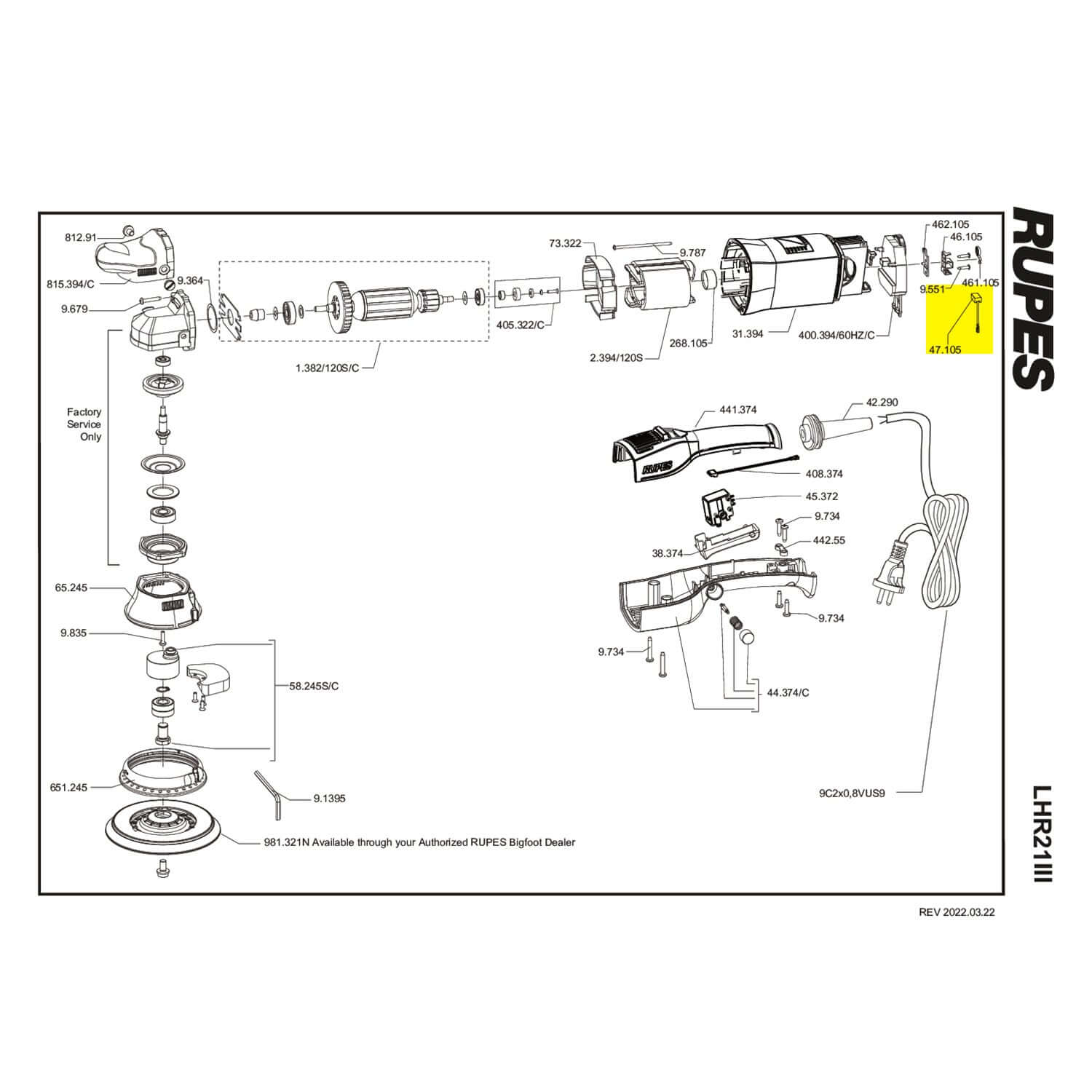

LHR21III Polisher
LHR21ES Polisher

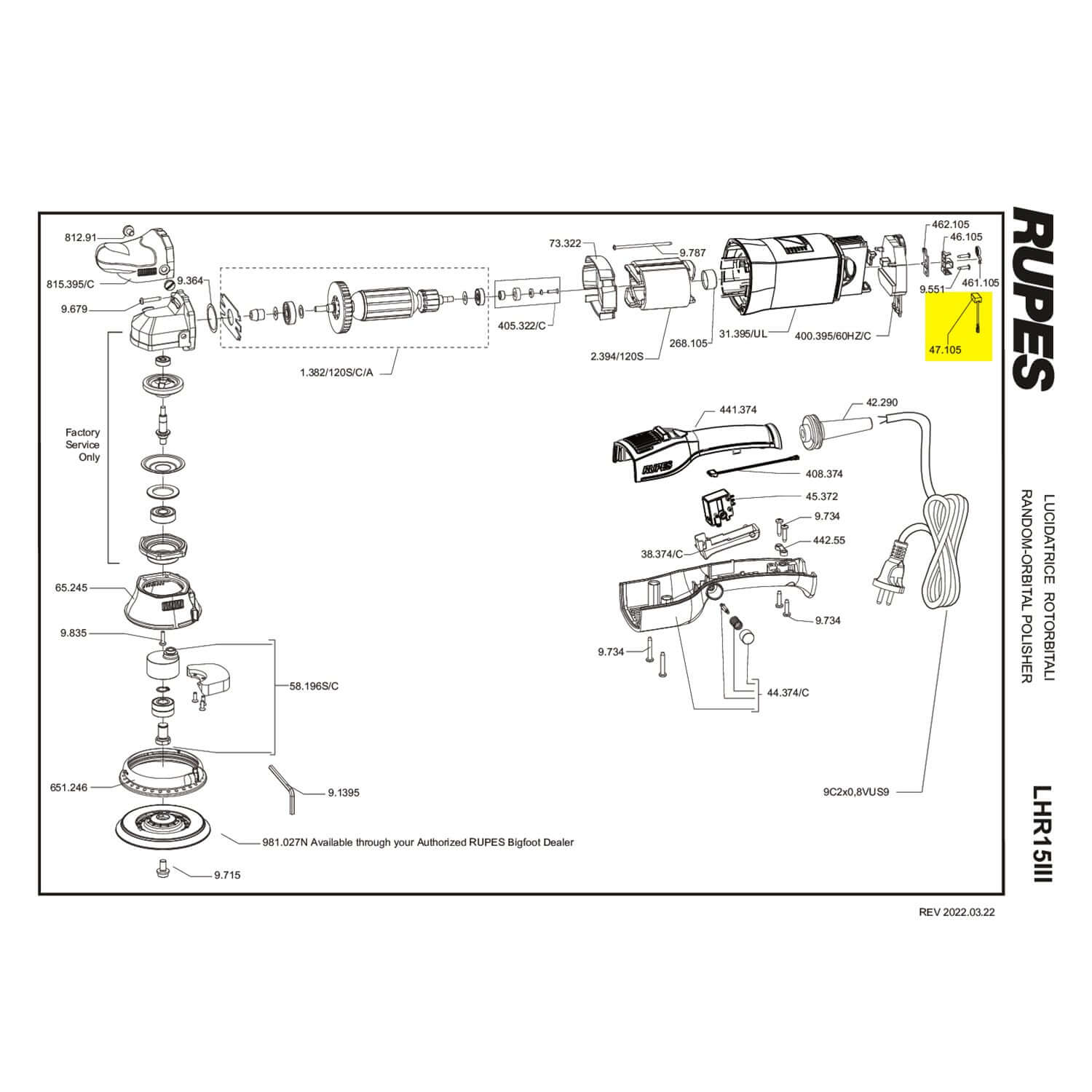

LHR15III Polisher

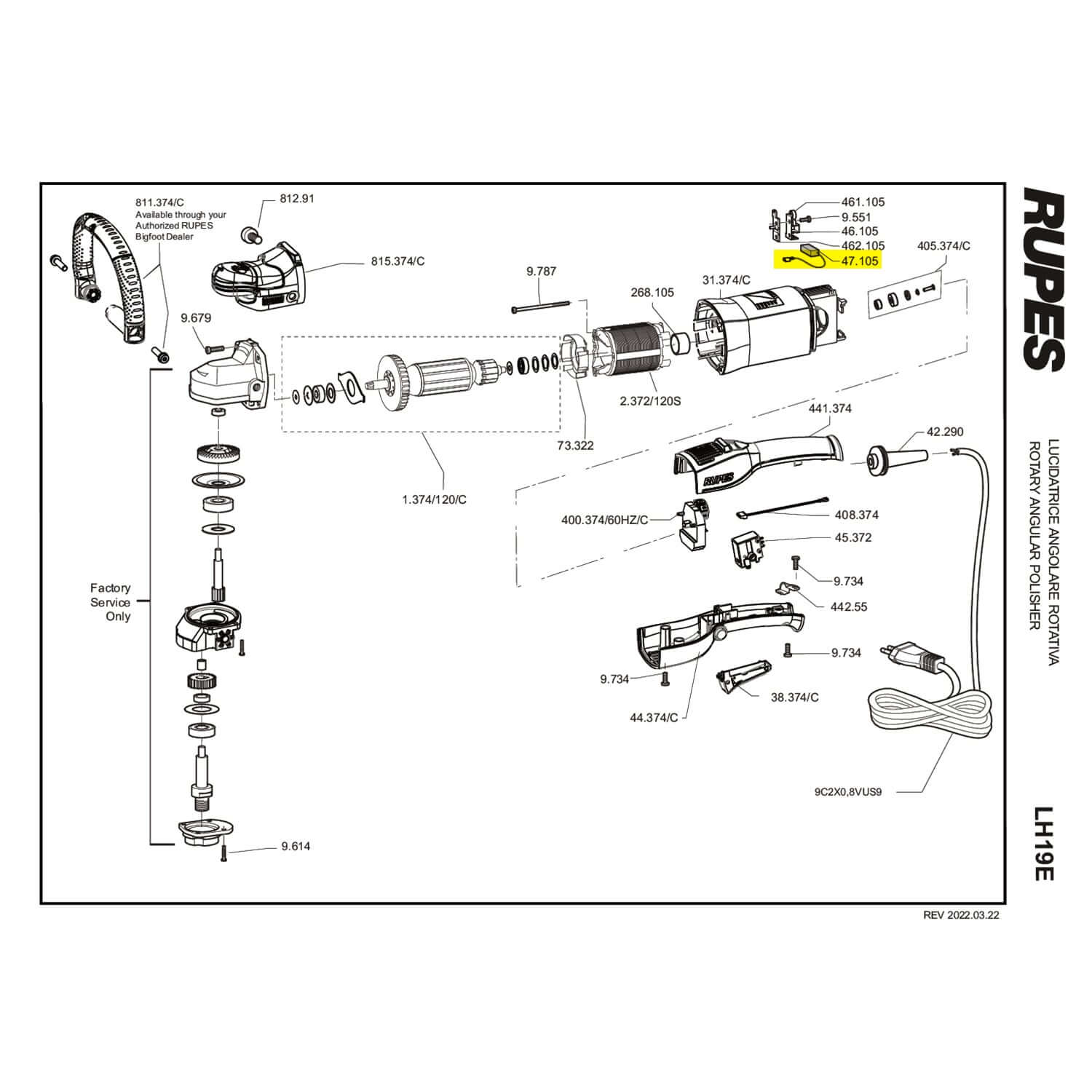

LH19E Polisher

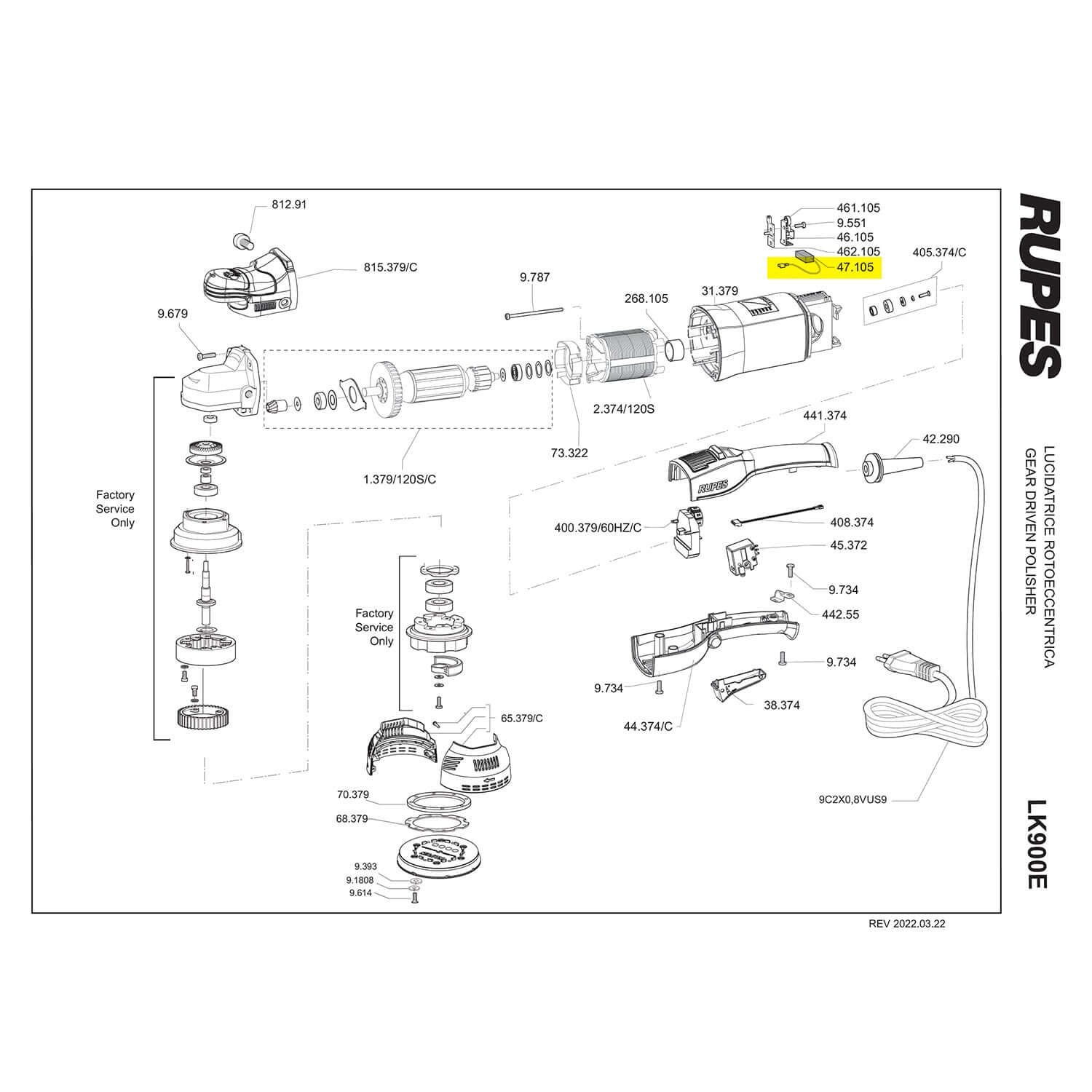

LK900E Polisher
LHR75E Polisher
HLR75 Polisher
